Slide LR6 Z With Covers & Tensioners

PART N^o 28.0138/2

$324.50 each

PART N^o: 28.0138/2$324.50 each

Motor driven linear guides where smooth ball bearing travel is required
Use with Linear Rail LR 6 S, Part # 28.0525
For use with Timing Belt 16 AT 5
Measuring devices
Linear guide for material handling

PART No: 28.0138/2 Category: Linear System LR6 Z

Technical Data / Items Supplied

Aluminum plate, anodized
Qty 4 double row angular contact bearings and bushings
Assembled & ready to use
Qty 2 M5x10 set screws for tensioning bearings on rail
Qty 4 gray plastic covers with spring loaded greasing felts
Timing belt tensioners integrated into each side of slide
See load capacity data sheet
Max. Speed – – 5 M/S (196″/S)
Weight – .502 kg

Applications

Assembly Info

Slide onto linear guide LR6
If required, tighten bearings to rail by tightening M5 set screws on side with metric hex key 2.5
Recommended locking torque for bushings 20 Nm

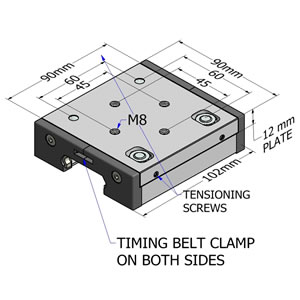

28.0138_2_Linear_Slide_LR6_For_Timing_Belt_L

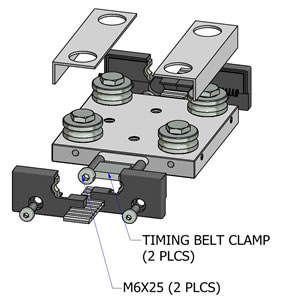

28.0138_2_Linear_Slide_LR6_For_Timing_Belt_M

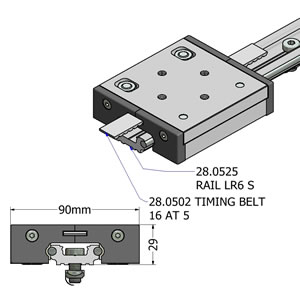

28.0138_2_Linear_Slide_LR6_For_Timing_Belt_R

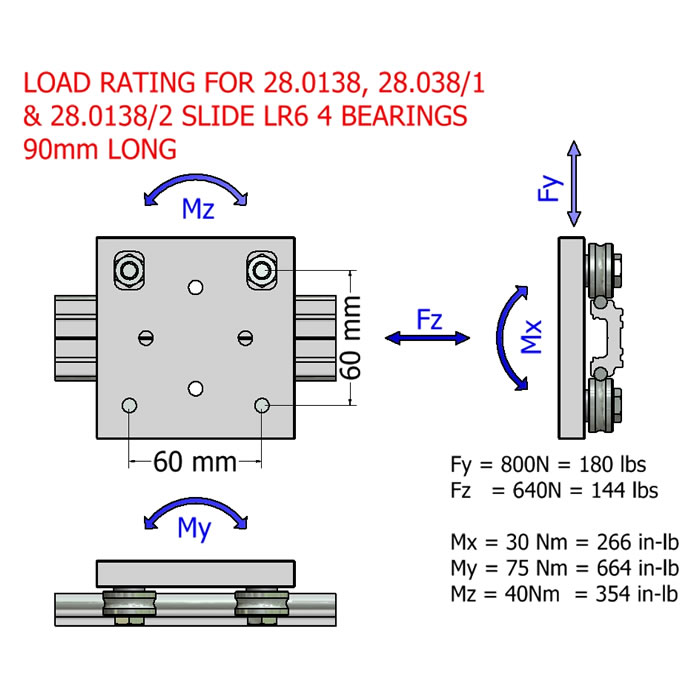

28.0138 SLIDE LR6 LOAD CAPACITY

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

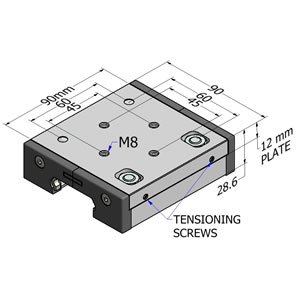

Slide LR6 With Covers

Part N^o 28.0138/1

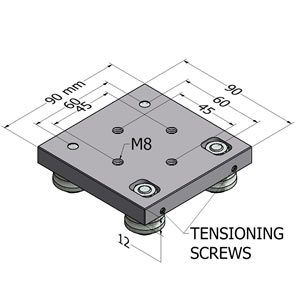

Linear Slide LR 6

Part N^o 28.0138

Timing Belt 16 AT 5

Part N^o 28.0502

Related Products

Products with similar features & uses

Module LR6 Z 90

Part N^o 28.0501

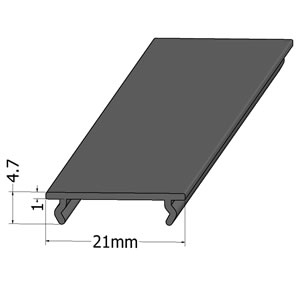

Rail LR6 S Cover
