Timing Belt 16 AT 5

PART No 28.0502
$0.55 each
PART No: 28.0502$0.55 each
  • Suitable with all LR6 pulleys Part # 28.0510/*

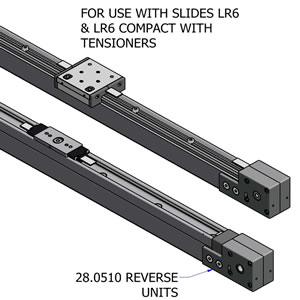

  • For use with linear slide LR 6 Z Part # 28.0138/2
  • Large range of linear positioning & linear motion applications
PART No: 28.0502 Category:

Technical Data / Items Supplied

  • Belt Polyurethane, white, steel wire reinforced
  • Belt type 16 AT 5
  • Can be ordered cut to size
  • Full roll – 100 m
  • Weight – .052 kg/m
  • Max load – 1260 N

Applications

Assembly Info

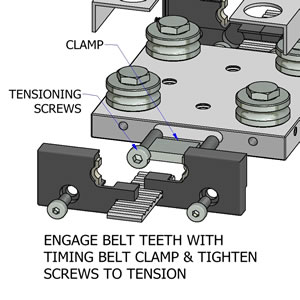

  • Insert thru timing belt pulley LR6 reverse units & attach to built in tensioners on the LR6 Z slide
  • Belt length = 2 x rail length + 260mm
28.0502_Timing_Belt_16AT5_L
28.0502_Timing_Belt_16AT5_M
28.0502_Timing_Belt_16AT5_R

Downloads

3D Step
Solidworks
Inventor
