Strengthening Element 45 F

PART No 21.1761/9
$34.10 each
PART No: 21.1761/9$34.10 each
  • Reinforcement of right angle joints
  • Lengths from 6″ to 6′ available upon request
PART No: 21.1761/9 Category:

Technical Data / Items Supplied

  • 20.1033 45×45 F Profile L = 360mm (14.17″)
  • (Other lengths available on request)
  • 2 M8x35 socket head caps screws
  • 2 M8 square nuts with position fixing
  • Use part # 21.1761 for Strengthening Element 45 Made from Profile 45×45, part # 20.1006
  • For lengths other that 360mm use part # 21.1761/9C & specify L
  • Weight – .67kg

Applications

Assembly Info

  • Insert square nuts into t-slots
  • Recommended locking torque 20 Nm
  • Cover holes with End Cap GL 22.1208/1 sold separately
21.1761_9-Strengthening-Element-45-Photo
21.1761_STRENGTHENING_ELEMENT_45_L
21.1761_STRENGTHENING_ELEMENT_45_M

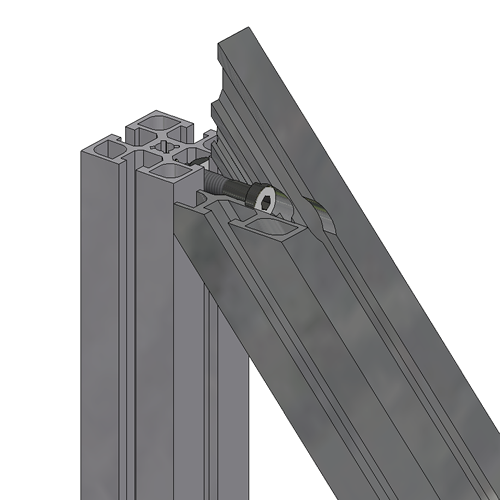

21.1761_9-STRENGTHENING-ELEMENT-45F_R

Downloads

3D Step
