Strengthening Element 90 F

PART No 21.1762/9
$50.60 each
PART No: 21.1762/9$50.60 each
  • Reinforcement of right angle joints
  • Lengths from 6″ to 6′ available upon request
PART No: 21.1762/9 Category:

Technical Data / Items Supplied

  • 20.1032 45×90 Profile F L = 360mm (14.17″)
  • (Other lengths available on request)
  • 4 M8x35 socket head caps screws
  • 4 M8 square nuts with position fixing
  • Use part # 21.1762 for Strengthening Element 90 made from Profile 45×90, Part # 20.1009
  • For lengths other that 360mm use part # 21.1762/9 C & specify L
  • Weight – 1.08 kg

Applications

Assembly Info

  • Insert square nuts into t-slots
  • Recommended locking torque 20 Nm
  • To Cover Holes Use End Cap GL 22.1208/1 sold separately
21.1762_9-Strengthening-Element-90-F-Photo
21.1762_Strengthening_Element_90_L
21.1762_Strengthening_Element_90_M

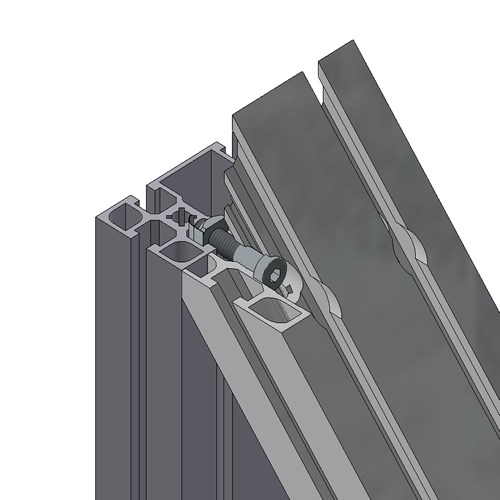

21.1762_9_Strengthening_Element_90-F_R

Downloads

3D Step
