Slide In T-Slot Bar 45

PART No 21.1029/9
$14.63 each
PART No: 21.1029/9$14.63 each
  • End to end butt joint of profiles
  • Profile extension
  • Particularly usefull for trade shows to quickly join sub-assemblies together
  • Bull nose guides profiles easily together even when multiple t-slots bars are used at once.
PART No: 21.1029/9 Category:

Technical Data / Items Supplied

  • 90mm long steel T shaped bar, zinc plated
  • 2 set screws M8x14, Part # 21.1303
  • Ships fully assembled
  • Weight – .06 kg

Applications

Assembly Info

  • No machining required
  • Leave inserted in one of the assemblies. No loose parts are used.
  • Tighten set screws to drive bar to t-slot top

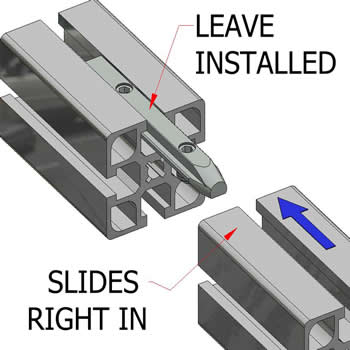

21.1029_7_Slide_In_T-Slot_Bar_45_MP

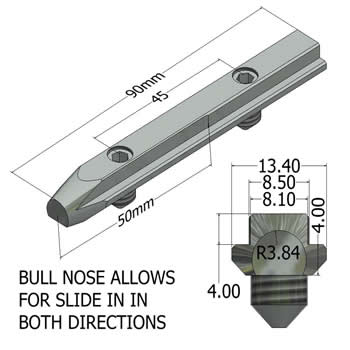

21.1029_7_Slide_In_T-Slot_Bar_45_L

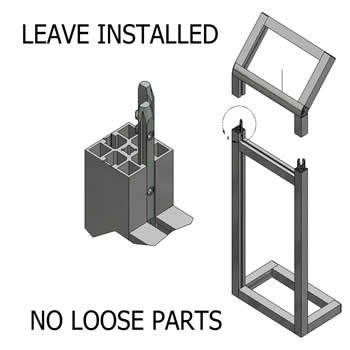

21.1029_7_Slide_In_T-Slot_Bar_45_M

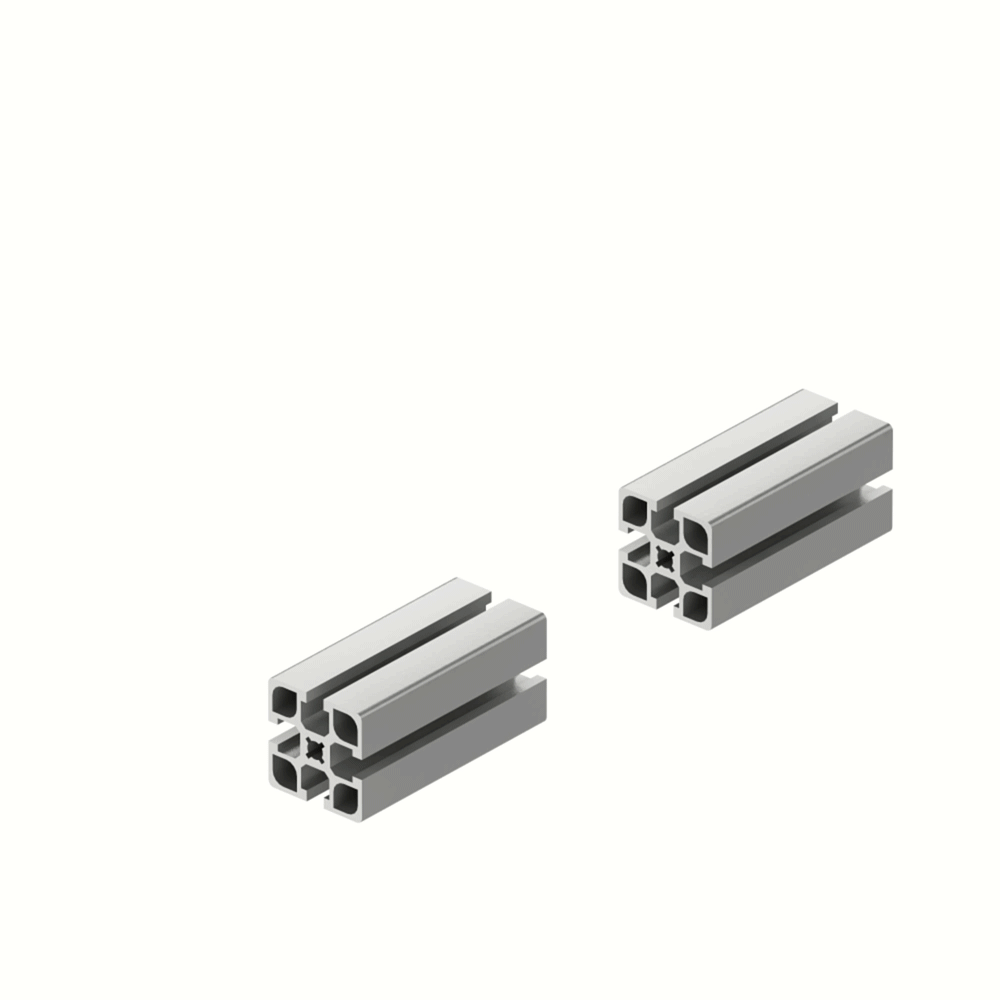

T-Slot_Bar_Full

Downloads

3D Step

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

21.1030_T-SLOT_BAR_PROFILE_MP

T-Slot Bar Profile Stainless

Part No 21.1030/1

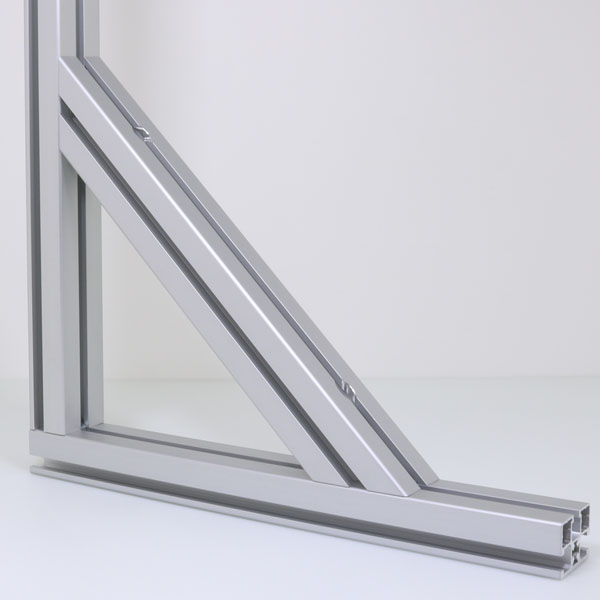

21.1761_9-Strengthening-Element-45-Photo

Strengthening Element 45 F

Part No 21.1761/9

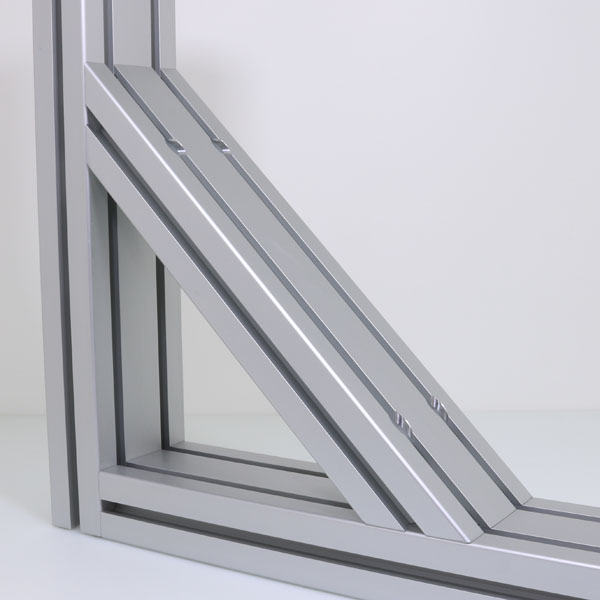

21.1762_9-Strengthening-Element-90-F-Photo
