Structural Bracket 180

PART No 21.9371
$29.04 each
PART No: 21.9371$29.04 each
  • Right angle connection on 45 series profiles
  • Often used to stiffen a frame where the inner t-slot is already being used
PART No: 21.9371 Category:

Technical Data / Items Supplied

  • 1/4″ aluminum powder coated gray
  • Qty. 7, M8x20 Flat Head Screws
  • Qty 7 M8 Square Nuts With Position Fixing
  • Weight – .48 kg

Applications

Assembly Info

  • No machining required
  • Insert square nuts into t-slots
  • Tighten screws with a 5mm hex key to 20 NM
21.9371 STRUCTURAL BRACKET 180 M

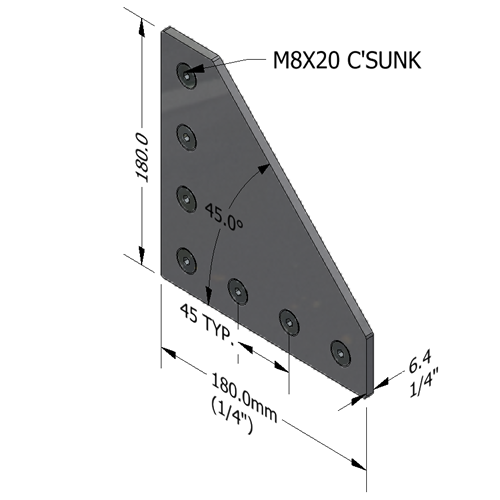

21.9371 STRUCTURAL BRACKET 180 L

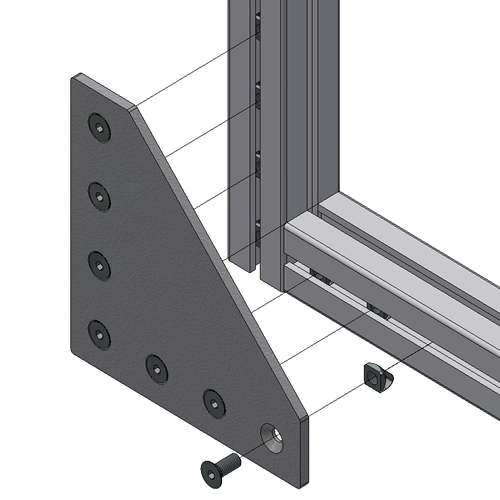

21.9371 STRUCTURAL BRACKET 180 R

Downloads

3D Step
Inventor
