T-Slot Bar 180

PART N^o 21.1101

$18.59 each

PART N^o: 21.1101$18.59 each

End to end but joint of profiles
Profile extension
Bar is a pressure fit in t-slot assuring accurate profile alignment
Replace set screws with Fixing Kits LRE & LRK to mount Linear Bearings LR12

PART No: 21.1101 Category: T-Slot Bars

Technical Data / Items Supplied

180mm long steel T shaped bar, zinc plated
4 set screws M8x14
Stainless version 21.0986
Weight – .12 kg

Applications

Assembly Info

No machining required
Insert in both profile grooves and position
Tighten set screws to drive bar to t-slot top
Forces magnify for butt joints. Use multiple t-slot bars to ensure a rigid connection

21.1101_T-SLOT_BAR_180_MP

21.1101_T-SLOT_BAR_180_L

21.1101_T-SLOT_BAR_180_M

21.1101_T-SLOT_BAR_180_R

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

T-Slot Bar 90

Part N^o 21.1029

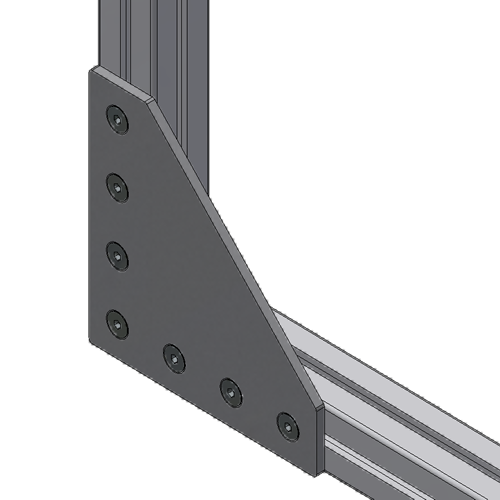

Structural Bracket 180
