Adaptor Plate LR6-Nema 34`

PART No 28.9110
$115.50 each
PART No: 28.9110$115.50 each
  • Plate designed for mounting a NEMA 34 Motor or gearbox to LR6 Pulleys
  • Motor can be mounted on the left or right side of LR6 pulley reverse unit
PART No: 28.9110 Category:

Technical Data / Items Supplied

  • Aluminum, natural 3/8″ Thick, mill finish
  • Qty 4 M6 x 55 screws for mounting plate to LR6 pulley housing
  • Qty 4 M6 x 16 screws for mounting motor to plate
  • Many motors can mounted. Send us a print of your motor for other sizes
  • Weight – .14 kg

Applications

Assembly Info

  • No processing or additional hardware required. Simply replace screws that hold the LR 6 reverse unit together with the supplied M6x55 screws to mount plate.
  • Mount motor to plate with supplied M6x16 screws. These fit 1/4″ holes in Nema 34 motors & work with motor flange thickness of 1/4″ – 3/8″
CLICK HERE FOR PDF

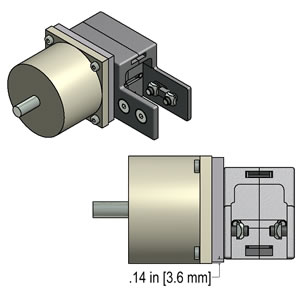

28.9110_Adaptor_Plate_LR6-Nema34_L
28.9110_Adaptor_Plate_LR6-Nema34_M
28.9110_Adaptor_Plate_LR6-Nema34_R

Downloads

3D Step
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

28.0502_Timing_Belt_16AT5_L

Timing Belt 16 AT 5

Part No 28.0502
28.0138_2_Linear_Slide_LR6_For_Timing_Belt_L

Slide LR6 Z With Covers & Tensioners

Part No 28.0138/2

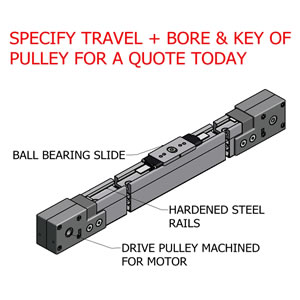

28.0503_LR_6_Z_COMPACT_45_L
