Linear Slide LR 6 Z Compact

PART No 28.0520
$242.00 each
PART No: 28.0520$242.00 each
  • Motor driven linear guides where smooth ball bearing travel is required
  • Use with Linear Rail LR 6 Compact, Part # 28.0119
  • For use with Timing Belt 16 AT 5
  • Measuring devices
  • Particularly use full when a robust, compact linear positioner is required.
PART No: 28.0520 Category:

Technical Data / Items Supplied

  • Aluminum plate, anodized
  • Qty 3 double row angular contact bearings and bushings
  • Assembled & ready to use
  • Qty 2 set screws for tensioning center bearing onto rail
  • Qty 2 gray plastic protective guards
  • Timing belt clamps integrated into each side of slide
  • Click here for load ratings
  • Max. Speed – – 5 M/S (196″/S)
  • Weight – .192 kg

Applications

Assembly Info

  • Ships fully assembled
  • Slide onto linear guide LR6 compact
  • If required, tighten bearings to rail by tightening set screws on side. This can be done while the slide is on the rail. Do not loosen the center bearing from the underside. Simply loosen one set screw & tighten the other until desired tension is achieved. Then tighten second set screw to lock bearing in place.
  • Recommended locking torque for bushings 20 Nm
28.0520_Slide_LR-6-Z_Compact_L

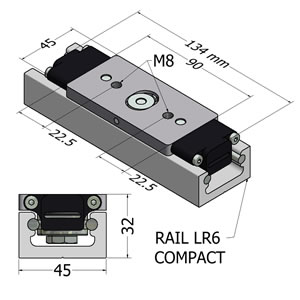

28.0520_Slide_LR-6-Z_Compact_M

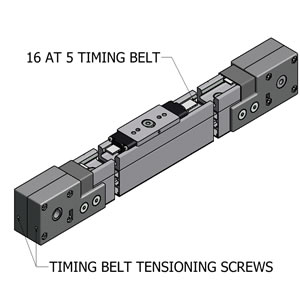

28.0520_Slide_LR-6-Z_Compact_R

Downloads

3D Step
Inventor
