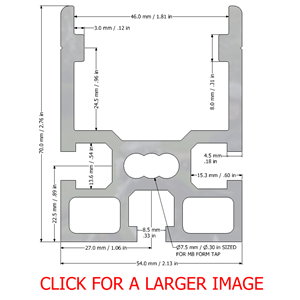

Profile Height Adjustment

PART No 20.1143
Price range: $0.00 through $514.49 each

Cost per inch = $2.18

(6.00 meters)

Min = 1.00 in | Max = 236.22 in

A cut fee of $4.18 will be added to each cut piece that's less than the full length.

*This cut length is too costly to ship via normal UPS shipping. Please contact us for a quote.

Technical Data / Items Supplied

  • 6063 aluminum, clear anodized
  • Order cut precisely to size or in full lengths
  • CNC machining services available
  • E-mail prints to:sales@minitecframing.com
  • lx = 40.251 cm4
  • ly = 39.822 cm4
  • wx = 9.624 cm3
  • wy = 14.749 cm3
  • Weight 2.94 kg/m
  • For Cut Charge Use Part # 25.1095
  • Full length 6 m
  • Packing unit 24

Assembly Info

  • MiniTec Power-Lock fastener. Thread hole closest to the t-slot the Power-Lock will be facing

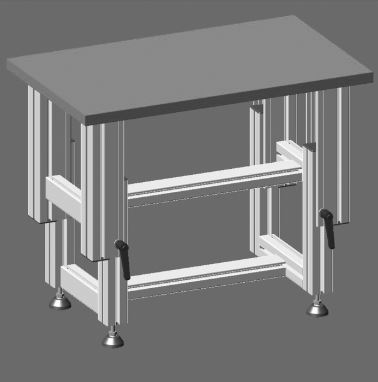

  • Drill hole in height adjustment profile at alignment groove for crank handle or screw. Place square nut in t-slot of 45 series profile
  • Often used with Clamping Lever M8x16, Part # 21.2015
  • End cap use 22.0979/1
