Rail 180 H

PART N^o 28.0011/2

PART N^o: 28.0011/2 each

Linear guide for slides made using Ball Bearing LR 12 like the Slide LW 90
Rails can be joined for longer travels

PART No: 28.0011/2 Category: Rails

Technical Data / Items Supplied

Aluminum Profile 90×180 S
Shaft Supporting Profiles on both sides
Shaft 12 on both sides
End cap 22.1069/1 sold separately (2 per end required)
Can be ordered cut to size +/- .01″
For cut charge use Part # 25.9005
Stainless Version 28.0011/4
Full Length – 6 m
Weight – 14.220 kg/m

Applications

Assembly Info

Rail ships assembled
For vertical or high speed applications use Shaft Retention Device, Part # 28.0052
See load capacity data sheet for LR linear system

28.0011_2_Rail_180H_MP

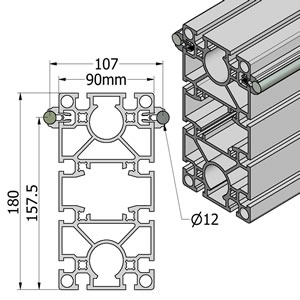

28.0011_2_Rail_180H_L

28.0011_2_Rail_180H_M

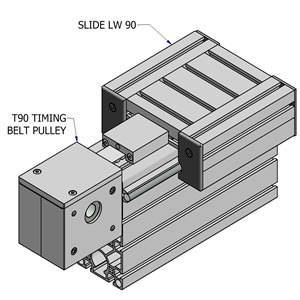

28.0011_2_Rail_180H_R
