Rail 180 F

This is a custom product - CLICK HERE to get a quote!
PART No 28.0011/1
PART No: 28.0011/1 each

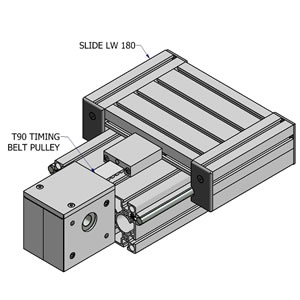

  • Linear guide for slides made using Ball Bearing LR 12 like the Slide LW 180
  • Rails can be joined for longer travels
PART No: 28.0011/1 Category:

Technical Data / Items Supplied

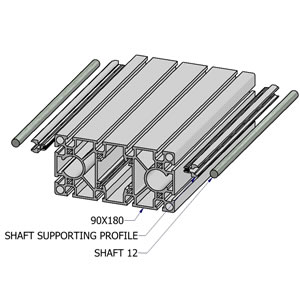

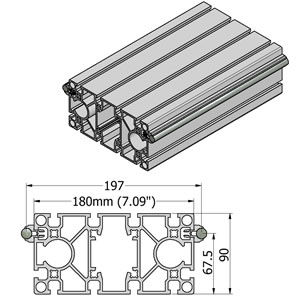

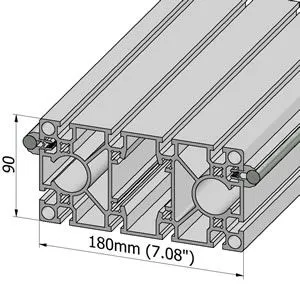

  • Aluminum Profile 90×180 S
  • Shaft Supporting Profiles on both sides
  • Shaft 12 on both sides
  • End cap 22.1069/1 sold separately (2 per end required)
  • Can be ordered cut to size +/- .01″
  • For cut charge use Part # 25.9005
  • Stainless Version 28.0011/3
  • Full Length – 6 m
  • Weight – 14.220 kg/m

Applications

Assembly Info

  • Rail ships assembled
  • For vertical or high speed applications use Shaft Retention Device, Part # 28.0052
  • See load capacity data sheet for LR linear system
