Rail 90

PART N^o 28.0008

PART N^o: 28.0008 each

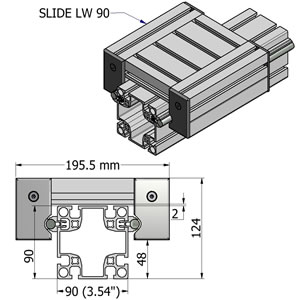

Linear guide for slides made using Ball Bearing LR 12 like the Slide LW 90
Rails can be joined for longer travels

PART No: 28.0008 Category: Rails

Technical Data / Items Supplied

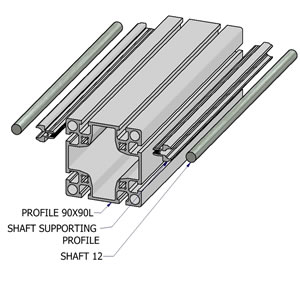

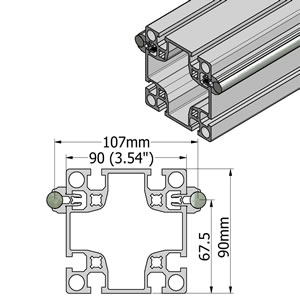

Aluminum Profile 90×90 L
Shaft Supporting Profiles on both sides
Shaft 12 on both sides
End cap 22.1069/1 sold separately
Can be ordered cut to size +/- .01″
For cut charge use Part # 25.9005
Stainless Version 28.0008/3
Full Length – 6 m
Weight – 10.02 kg/m

Applications

Assembly Info

Rail ships assembled
For vertical or high speed applications use Shaft Retention Device, Part # 28.0052
See load capacity data sheet for LR linear system

28.0008_Rail_90_MP

28.0008_Rail_90_L

28.0008_Rail_90_M

28.0008_Rail_90_R
