Rail LR 6 S

PART No 28.0525
Price range: $0.00 through $805.51 each

Cost per inch = $3.41

(6.00 meters)

Min = 12.00 in | Max = 236.22 in

A cut fee of $13.31 will be added to each cut piece that's less than the full length.

*This cut length is too costly to ship via normal UPS shipping. Please contact us for a quote.

PART No: 28.0525 Category:

Technical Data / Items Supplied

  • Aluminum rail, anodized
  • 2 steel shafts Ø6mm Cf 53, 60+/-3 HRC
  • Aluminum rail pre-drilled Ø8.5mm on 150mm centers
  • For cut charge use Part # 25.1100
  • Stainless Version, Part # 28.0526
  • Full Length – 6 m (236.22″)
  • Weight – 1.18 kg/m

Applications

Assembly Info

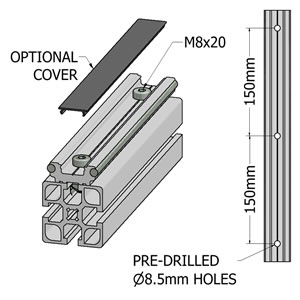

  • Fasten to T-slot with M8x20 socket head cap screws Part # 21.1202 (sold separately)
  • Fasten to T-Slots with M8 Square Nuts or M8 Square Nuts With Position Fixing (sold separately)
  • Cut to size centering around existing holes
  • Drill alignment V groove allows for easy location for additional holes
  • Optional plastic cover, part # 22.1160
28.0525_Rail_LR6_S_L
28.0525_Rail_LR6_S_M

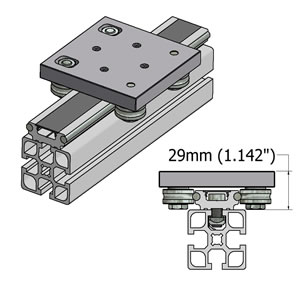

28.0525_Rail_LR6_S_R

Downloads

3D Step
Inventor
