Slide LW 45

PART N^o 28.0091

PART N^o: 28.0091 each

Linear guide for use with rails 45, 45x90H, 45x180H & 135H
Linear guide for a broad range of custom constructions, both single & multi-axis
Slide & rail are made from standard MiniTec Profiles making the system easy to customize. Also there is no need for adaptor plates since linear system & frame are made from the same product

PART No: 28.0091 Category: Slides

Technical Data / Items Supplied

Slide Made from profile 32×180 & 45×45
Qty 4 Ball Bearings LR12, Part # 28.0001

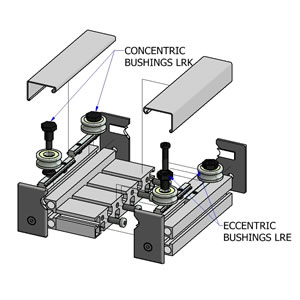

Qty 2 Concentric Bushings LRK, Part # 28.0021
Qty 2 Eccentric Bushings LRE, Part # 28.0022
Qty 2 Bearing Covers made from Cover Profile LR, 28.0049
Qty 2 Left End Caps, Part # 28.0004/3
Qty 2 Right End Caps, Part # 28.0004/1
See load ratings for Slide LW 45
See load ratings for all LR series slides
Weight – 2.26 kg

Applications

Assembly Info

Slide on rail end and adjust eccentric bushings to adjust bearing clearance

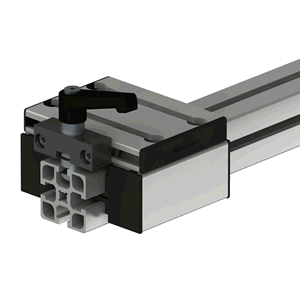

Picture above shown with optional Slide Clamping Unit, Part # 28.0270

28.0091_Slide_LW45_MP

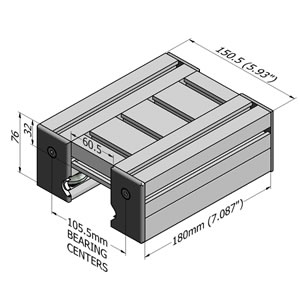

28.0091_Slide_LW45_L

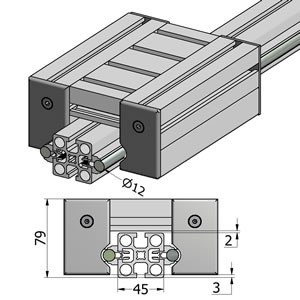

28.0091_Slide_LW45_M

28.0091_Slide_LW45_R
