Slide LW 135

PART N^o 28.0084

PART N^o: 28.0084 each

Linear guide for use with rail 45×135 F
Linear guide for a broad range of custom constructions, both single & multi-axis
Slide & rail are made from standard MiniTec Profiles making the system easy to customize. Also there is no need for adaptor plates since linear system & frame are made from the same product

PART No: 28.0084 Category: Slides

Technical Data / Items Supplied

Slide Made from profile 32×180 & 45×45
Qty 4 Ball Bearings LR12
Qty 2 Concentric Bushings
Qty 2 Eccentric Bushings
Qty 2 bearing covers made from Cover Profile LR
End caps
Click here for load ratings for slide LW 135
See load ratings for all LR series slides
Weight – 3.15 kg

Applications

Assembly Info

Slide on rail end and adjust eccentric bushings to adjust bearing clearance
Lock slide with optional Slide Clamping Unit, Part # 28.0270

28.0084_Slide_LW135_MP

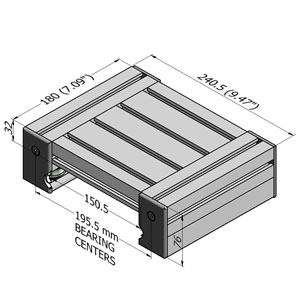

28.0084_Slide_LW135_L

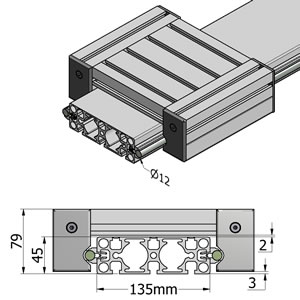

28.0084_Slide_LW135_M

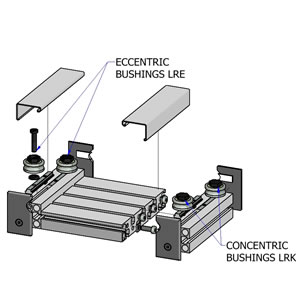

28.0084_Slide_LW135_R

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

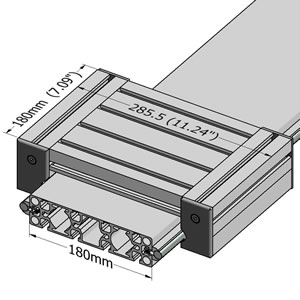

Slide LW 180

Part N^o 28.0087

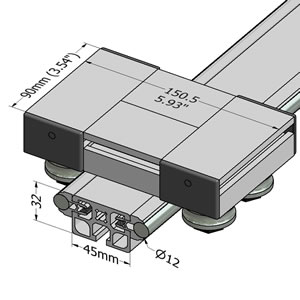

Slide LW 32
