Slide LW 90

PART No 28.0092
PART No: 28.0092 each
  • Linear guide for use with rails: 45x90F, 90×90 & 90×180 H
  • Linear guide for a broad range of custom constructions, both single & multi-axis
  • Slide & rail are made from standard MiniTec Profiles making the system easy to customize. Also there is no need for adaptor plates since linear system & frame are made from the same product
PART No: 28.0092 Category:

Technical Data / Items Supplied

  • Slide Made from profile 32×180 & 45×45
  • Qty 4 Ball Bearings LR12, Part # 28.0001
  • Qty 2 Concentric Bushings, Part # 28.0021
  • Qty 2 Eccentric Bushings, Part # 28.0022
  • Qty 2 bearing covers made from Cover Profile LR
  • Qty 2 Left End Caps, Part # 28.0004/3
  • Qty 2 Right End Caps, Part # 28.0004/1
  • See load ratings for slide LW 90
  • See load ratings for all LR series slides
  • Weight – 2.7 kg

Applications

Assembly Info

  • Slide on rail end and adjust eccentric bushings to adjust bearing clearance
  • Lock slide with optional Slide Clamping Unit, Part # 28.0270

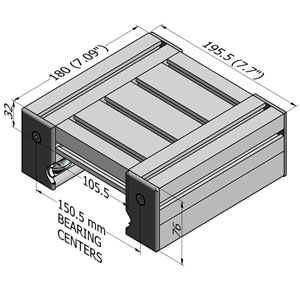

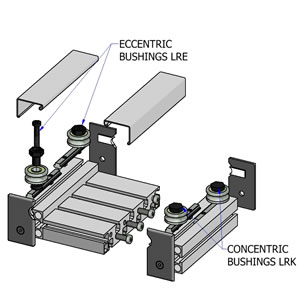

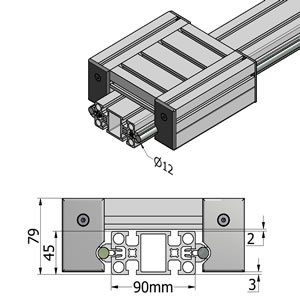

28.0092_Slide_LW90_MP
