Slide LW 32 E

PART No 28.0089
PART No: 28.0089 each
  • Linear guide for use with rails 19 & rail 32
  • Economical ball bearing slideSW
  • Linear guide for a broad range of custom constructions
PART No: 28.0089 Category:

Technical Data / Items Supplied

  • Slide Made from profile 32×180 completely assembled
  • Qty 4 Ball Bearings LR12
  • Qty 2 Concentric Bushings
  • Qty 2 Eccentric Bushings
  • End caps
  • Click here for load ratings for Slide LW 32E
  • See load ratings for all LR series slides
  • Weight – 1.92 kg

Applications

Assembly Info

  • Slide on rail end and adjust eccentric bushings to adjust bearing clearance
28.0089_Slide_LW_32_E_MP

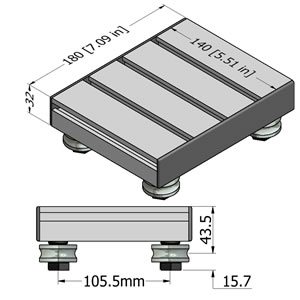

28.0089_Slide_LW_32_E_L

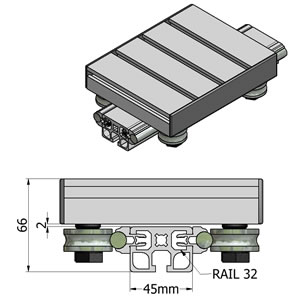

28.0089_Slide_LW_32_E_M

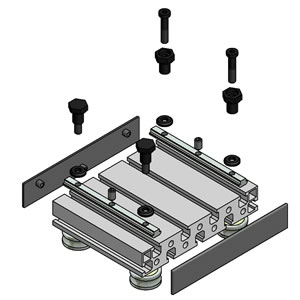

28.0089_Slide_LW_32_E_R

Downloads

3D Step
Solidworks
Inventor
