Slide LW 180

PART No 28.0087
PART No: 28.0087 each
  • Linear guide for use with rails: 45x180F & 90x180F
  • Linear guide for a broad range of custom constructions, both single & multi-axis
  • Slide & rail are made from standard MiniTec Profiles making the system easy to customize. Also there is no need for adaptor plates since linear system & frame are made from the same product
PART No: 28.0087 Category:

Technical Data / Items Supplied

  • Slide Made from profile 32×180 & 45×45

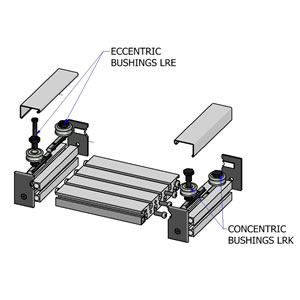

  • Qty 4 Ball Bearings LR12
  • Qty 2 Concentric Bushings
  • Qty 2 Eccentric Bushings
  • Qty 2 bearing covers made from Cover Profile LR
  • End caps
  • See load ratings for slide LW 180
  • See load ratings for all LR series slides
  • Weight – 3.59 kg

Applications

Assembly Info

  • Slide on rail end and adjust eccentric bushings to adjust bearing clearance
  • Lock slide with optional Slide Clamping Unit, Part # 28.0270

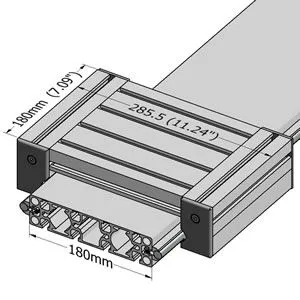

28.0087_Slide_LW180_MP

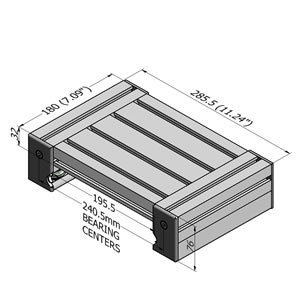

28.0087_Slide_LW180_L

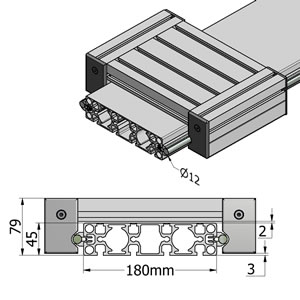

28.0087_Slide_LW180_M
28.0087_Slide_LW180_R

Downloads

3D Step
Solidworks
Inventor
